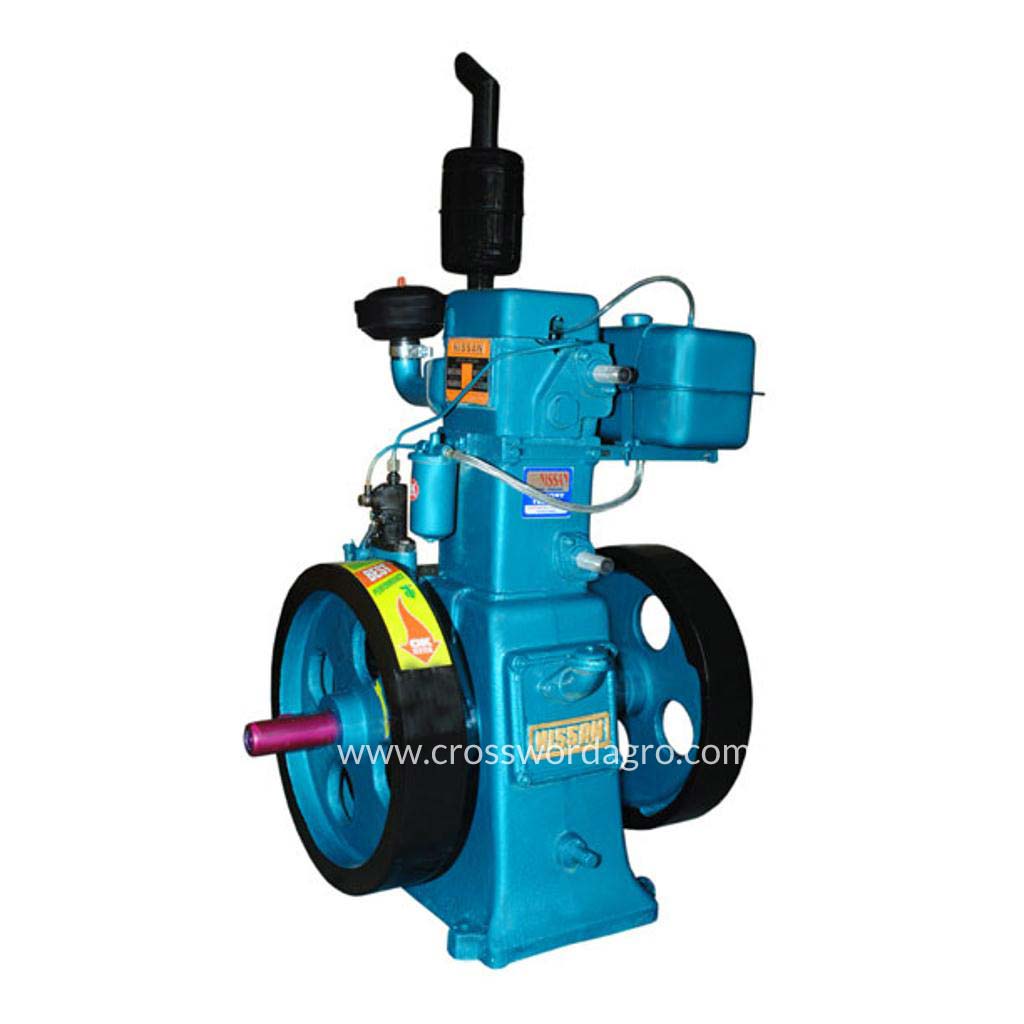

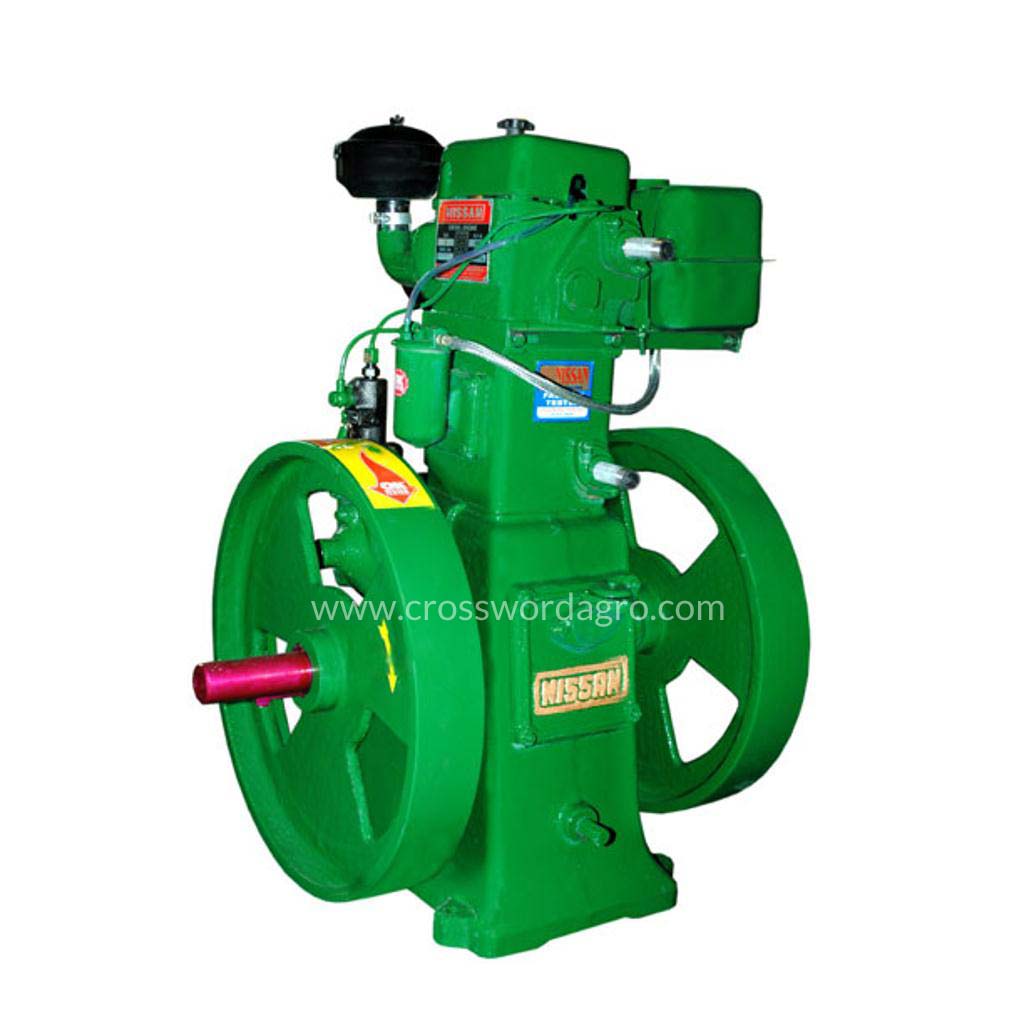

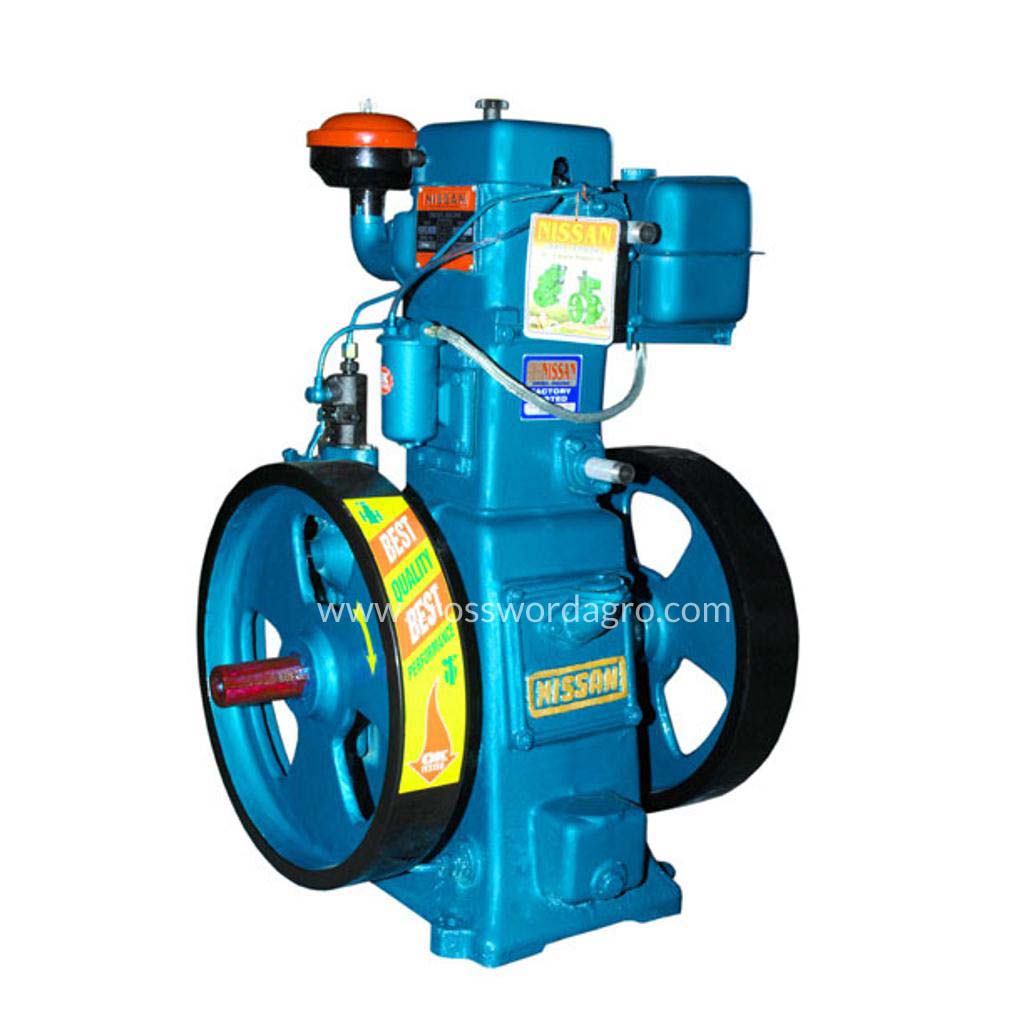

Lister Type Diesel Engine

Lister engines are the slow speed diesel engines mostly used as a prime mover for agricultural purpose. Lister type diesel engines are the Lister clones also known as CS engines.

Lister engines are Ignition Compression engines as fuel injector is present instead of spark plug and Diesel is used as a fuel.

We are one of the leading manufacturer of Lister Engines of various HP varying from 6 to 20 and RPM 650 to 1000 respectively. It can be of single or double cylinder. Water is used for cooling so the cooling type will be water Cooled. Fuel Injection will be of two types :- a) Direct Injection & b) Indirect Injection.

We have pride that our Lister type diesel engine has been produced with superior technical expertise and tested engine as per IS 11170-1985.

Starting

All the Diesel engines are available with handle start that is manual.

Packing

It will be packed in export worthy wooden case to keep safe from any damage.

Accessories

Exhaust-pot (silencer) , Air-cleaner , Starting handle , spanner set , screw driver , oil-can, tool-bag , Instruction book.

Applications

As Lister type diesel engine is prime mover can be attached such as irrigation, generators, rice huller, flour mill, threshers, concrete mixtures, etc.

Technical Specification of all Lister Engines


Lister type diesel engine 6hp 650 rpm
Engine Type* Cooling Type Rated Power (HP/kW) Rated Speed(RPM) No. of Cylinders Cylinders Bore(MM) Stroke (MM) Compression Ratio SFC at Full Load (G/Kwh) Injection System
BB/TRB Water Cool 6/4.4 650 1 114.3 139.7 17:01 268 IDI




Lister type diesel engine 8hp 850 rpm
Engine Type* Cooling Type Rated Power (HP/kW) Rated Speed(RPM) No. of Cylinders Cylinders Bore(MM) Stroke (MM) Compression Ratio SFC at Full Load (G/Kwh) Injection System
BB/TRB Water Cool 8/5.9 850 1 114.3 139.7 17:01 268 IDI




Lister type diesel engine 10hp 1000 rpm
Engine Type* Cooling Type Rated Power (HP/kW) Rated Speed(RPM) No. of Cylinders Cylinders Bore(MM) Stroke (MM) Compression Ratio SFC at Full Load (G/Kwh) Injection System
TRB Water Cool 10/7.35 1000 1 120 139.7 17:01 268 IDI




Lister type diesel engine 12hp 1000 rpm
Engine Type* Cooling Type Rated Power (HP/kW) Rated Speed(RPM) No. of Cylinders Cylinders Bore(MM) Stroke (MM) Compression Ratio SFC at Full Load (G/Kwh) Injection System
TRB Water Cool 12/8.8 1000 1 127 139.7 17:01 240 DI




Lister type diesel engine 14hp 1000 rpm
Engine Type* Cooling Type Rated Power (HP/kW) Rated Speed(RPM) No. of Cylinders Cylinders Bore(MM) Stroke (MM) Compression Ratio SFC at Full Load (G/Kwh) Injection System
TRB Water Cool 14/10.3 1000 1 127 139.7 16:01 240 DI




Lister type diesel engine 16hp 1000 rpm
Engine Type* Cooling Type Rated Power (HP/kW) Rated Speed(RPM) No. of Cylinders Cylinders Bore(MM) Stroke (MM) Compression Ratio SFC at Full Load (G/Kwh) Injection System
TRB Water Cool 16/11.77 1000 1 130 139.7 15:01 240 DI




Lister type diesel engine 16hp 850 rpm
Engine Type* Cooling Type Rated Power (HP/kW) Rated Speed(RPM) No. of Cylinders Cylinders Bore(MM) Stroke (MM) Compression Ratio SFC at Full Load (G/Kwh) Injection System
BB Water Cool 16/11.77 850 2 114.3 139.7 17:01 268 IDI




Lister type diesel engine 20hp 1000 rpm
Engine Type* Cooling Type Rated Power (HP/kW) Rated Speed(RPM) No. of Cylinders Cylinders Bore(MM) Stroke (MM) Compression Ratio SFC at Full Load (G/Kwh) Injection System
BB Water Cool 20/14.7 1000 2 120 139.7 17:01 268 IDI


Accessories

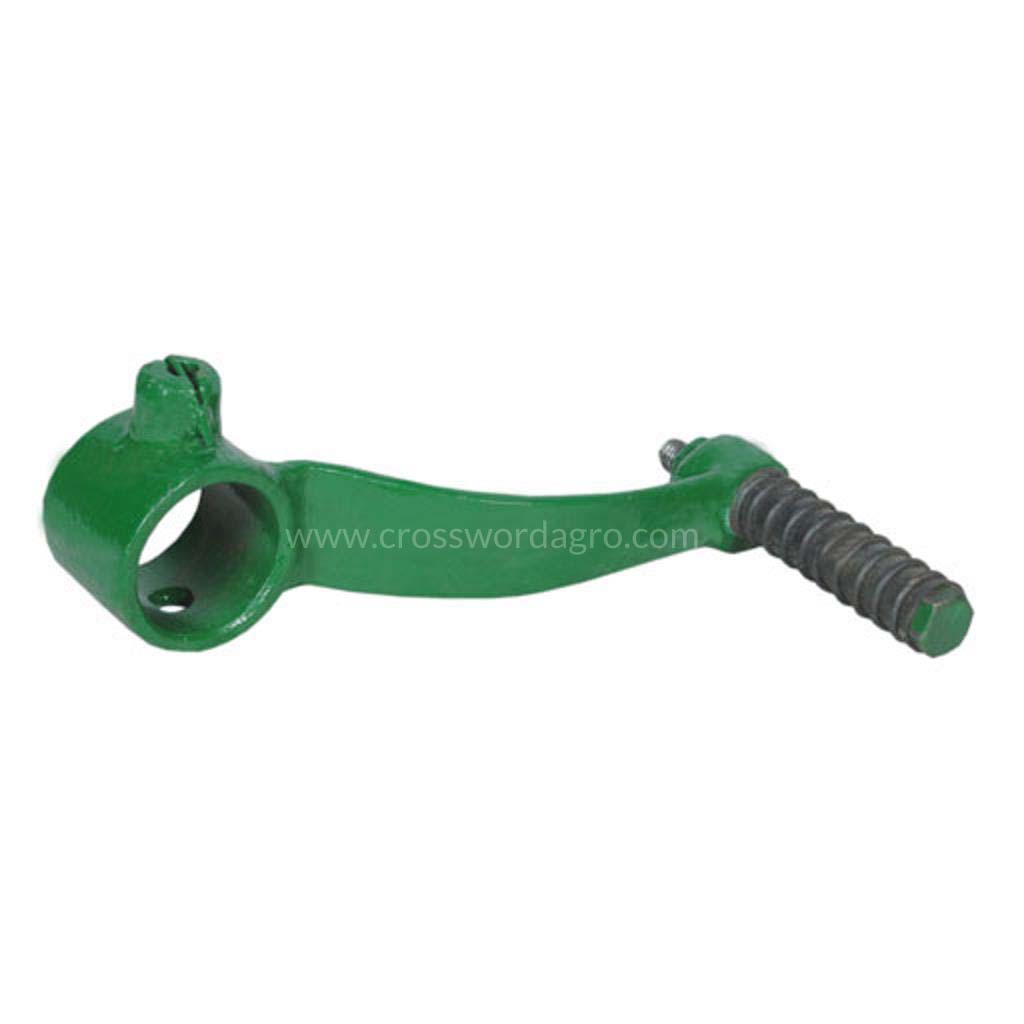

Starting Handle

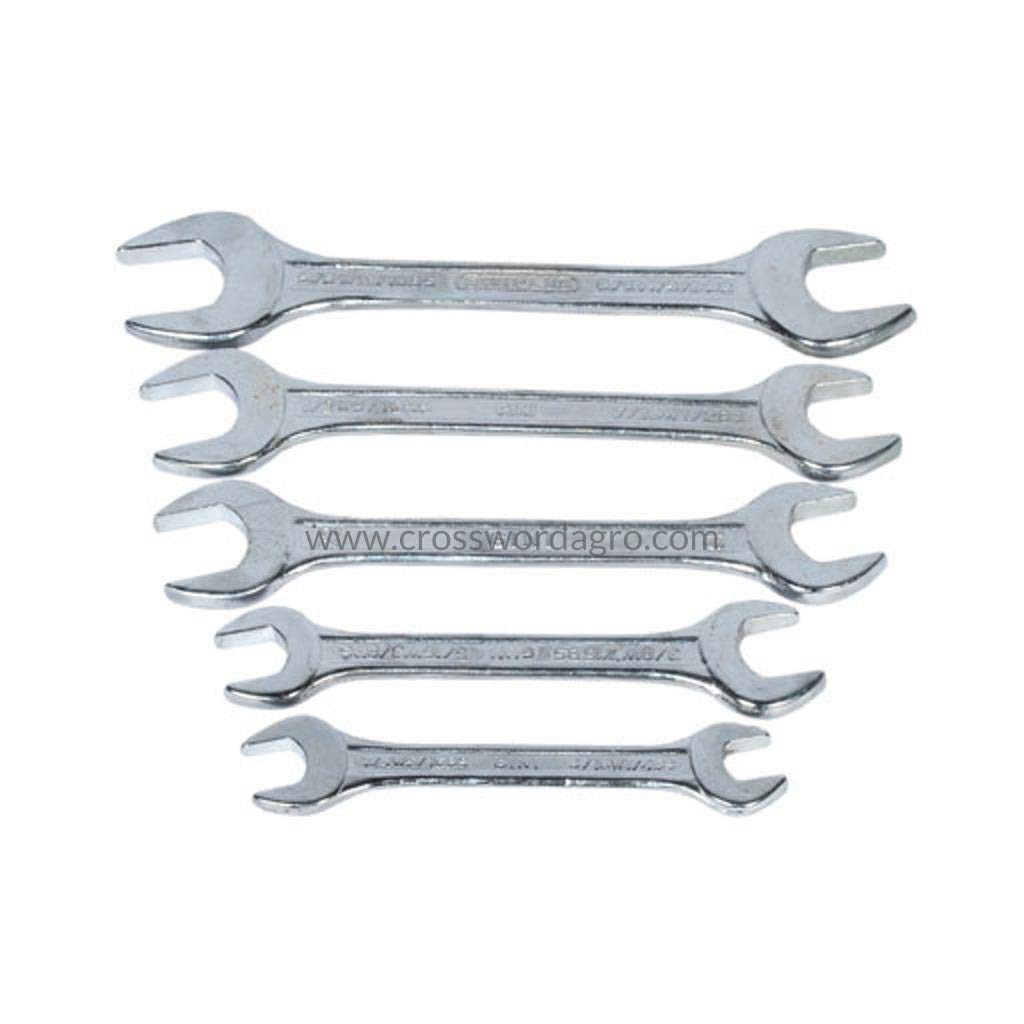

Spanner Set

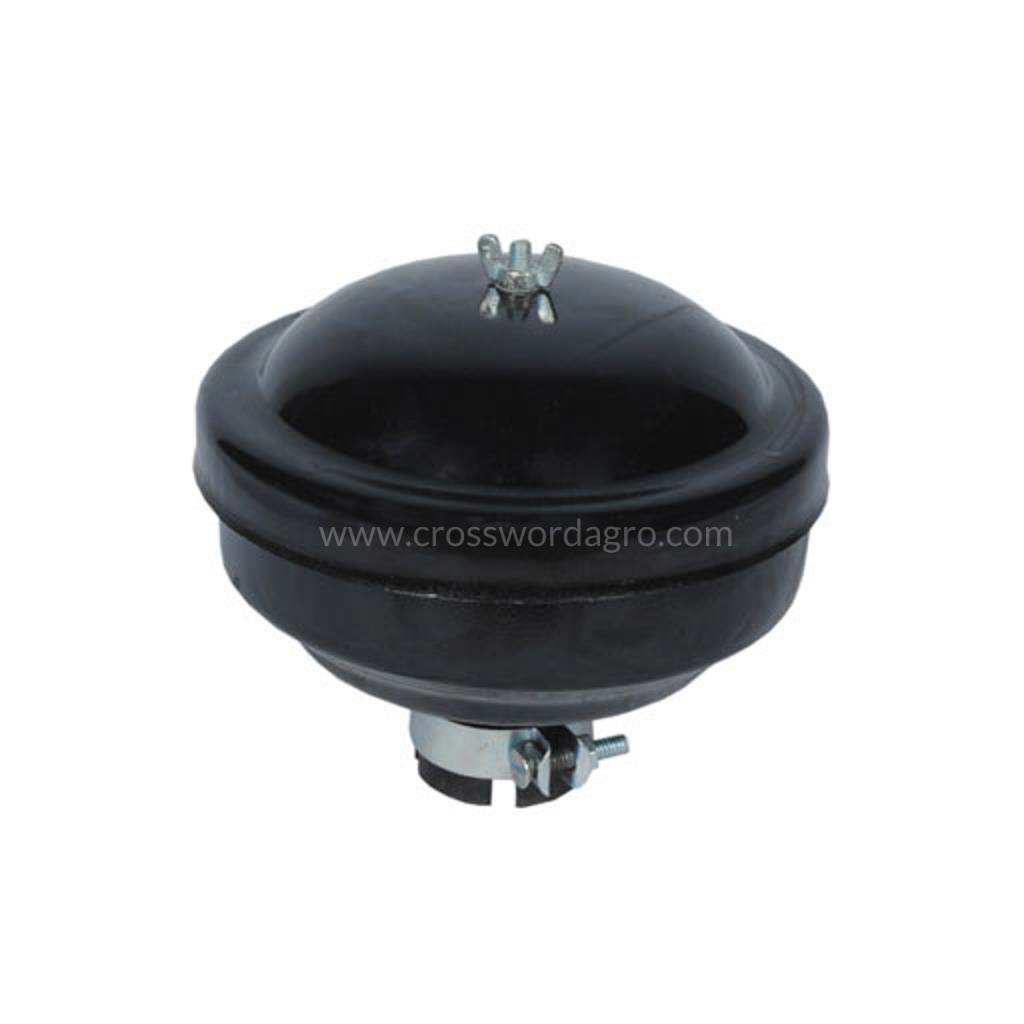

Air Cleaner

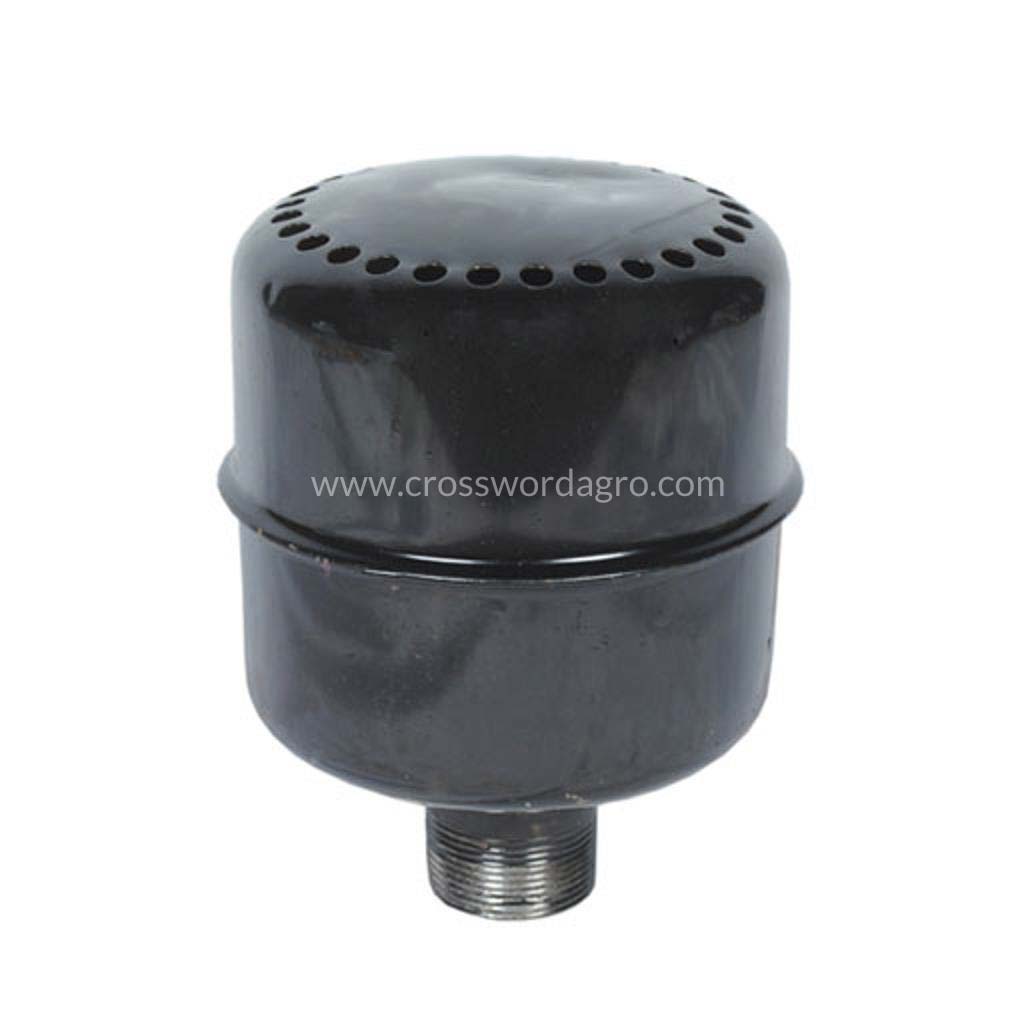

Exhaust Silencer
